The FPGA (Field Programmable Gate Array) development is one of the main activities of Skytechnology. We improve continuously our skills and we are up to date at the state of art of FPGA technologies related to programmable logic controllers. Projects of any complexity can be managed and brought to successful completion. Our engineers are subject to continuously courses of design to FPGA, HDL coding and Project Management.

Tools and workflows of the customer projects can be quickly acquired, in order to best suit the methodologies of the customer.

The following services are available:

  • Turnkey development of FPGA
  • Development of IP
  • FPGA development  with Fault Tolerance approach
  • Verification according DO-254

FPGA Turnkey Development

Skytechnology can deal with the development of a FPGA from any level of its life cycle. Skytechnology also can cooperate with the client to:

  • Feasibility Studies
  • Identification of requirements
  • Definition of the architecture
  • Verification Methodologies
  • Implementation of the project and its validation
  • Validation of the hardware platform

file4711279208151IP Development

Skytechnology can develop components and logical functions in accordance with customer specifications, directing the process to exploit the flexibility and the possibility of interfacing with the objective to obtain an IP reusable.

Skytechnology can integrate third party IP in order to obtain projects based on modular architectures. Our expertise in industrial interfaces allows the increasing of the number of fields of application in which the IP or the architectures developed can be reused.

FPGA Development with Fault Tolerance approach

The reconfigurable devices are increasingly used in critical applications (such as Aerospace, Automotive, Railways and Biomedical Systems). Fault-tolerant systems must continue proper operation when part of the system fails. This is achieved through redundant computer architectures. The structure of the reconfiguration of the FPGA enables fault-tolerant features through the ability to reconfigure some blocks with the objective to bypass failures occurred during the operation. Then, using FPGA, dynamically reconfigurable systems can be implemented with high reliability and low cost.

Our approach is focused on implementation of self-checking circuits with redundancy at a low level, able to autonomously identify the presence of failures within them,  both for control flows (finite state machines and microcontrollers) that for structures more data processing oriented.

For control structures, the use of the signature analysis allows you to determine faults using a hardware redundancy very limited, while the use of the redundant signed digit numeric representation allows you to implement arithmetic unit extremely fast with a capacity of built in failure detection.

In addition, we have developed methods of reconfiguration (after detection of a failure) based on the collaboration between hardware and software, with the objective to reconfigure the FPGA after detection of a failure.

We have also developed errors detection and correction codes for mass storage systems  and processing architectures based on Triple Modular Redundancy (TMR) for applications that do not allow the use of reconfiguration methods after a fault (for example, when it is not acceptable a down-time of the system when it is in maintenance).

Application Fields

The Skytechnology FPGA developers’ skills come from experiences in very different application areas:

  • Industrial communication protocols, controller, and sequencer, standard interfaces (VME, PCI)
  • Telecommunications: SDH and Ethernet
  • Broadcast: DVB-T
  • DSP: imaging, modulation, compression

Support to the certification DO-254

The complex hardware development of safety critical applications has required more structured and controlled implementation and testing methodologies. More the hardware is complex higher is the risk that it is affected by the presence of bugs; also, more the hardware is complex, more difficult it is test it.

To contrast those increased risks is now necessary to ensure that the possibility of mistakes in hardware design are treated in a more consistent and verifiable manner both during the implementation process end during the certification.

RTCA/EUROCAE offers a valid DO-254 certification, applicable to hardware design and to the FPGA development flow.

Our services help customers to define a lifecycle for the HW/FPGA design compliant with the DO-254 certification requirements.

Skytechnology supports its customers by offering following services:

  • Assurance analysis
    • To define the objectives
    • To select the assurance strategy
  • Plan process definition
    • To define the FPGA lifecycle
    • To select the standard
    • To define the development and verification methods
  • Support to the development activities
  • Support to the verification activities



Intel FPGA Trainings

As a member of the Intel FPGA Technical Training  Program Skytechnology can teach the following Intel training courses:

Introduction to VHDL (IHDL110)

Advanced VHDL Design Techniques (IHDL240)

The Quartus II Software Design Series: Foundation (IDSW110)

The Quartus II Software Design Series: Timing Analysis (IDSW120)

Advanced Timing Analysis with TimeQuest (IDSW125)

Timing Closure with the Quartus II Software (IDSW145)

Introduction to the Qsys System Integration Tool (IQSYS101)

Advanced Qsys System Integration Tool Methodologies (IQSYS102)

Designing with the Nios II Processor (IEMB112)

Designing with DSP Builder Advanced Blockset (IDSP220)

Courses can be arranged at the Customer or at Skytechnology sites.

Click to see the FPGA courses scheduled for Q2.



Intel FPGA Success Stories

Here below some of the latest most significant experiences using Intel FPGA are reported, divided by FPGA family.

Stratix IV

Ape-NeT Board: High-Speed connection board equipped with Stratix IV GX-290 FPGA featuring 24 high speed serial links up to 6Gbps, Gen2 PCIe x8 interfaces and DDR3 memory interface. It is used in a super computer for the data exchange between GPUs.

Formatter Board: Equipped with two Stratix IV GX-230 FPGAs featuring twenty 2.5Gbps serial links, high speed RS-485 serials, 8 analog channels. It is used for the classification of input data from sensors, rate adaptation and packet building in the front-end of electronic warfare equipment.

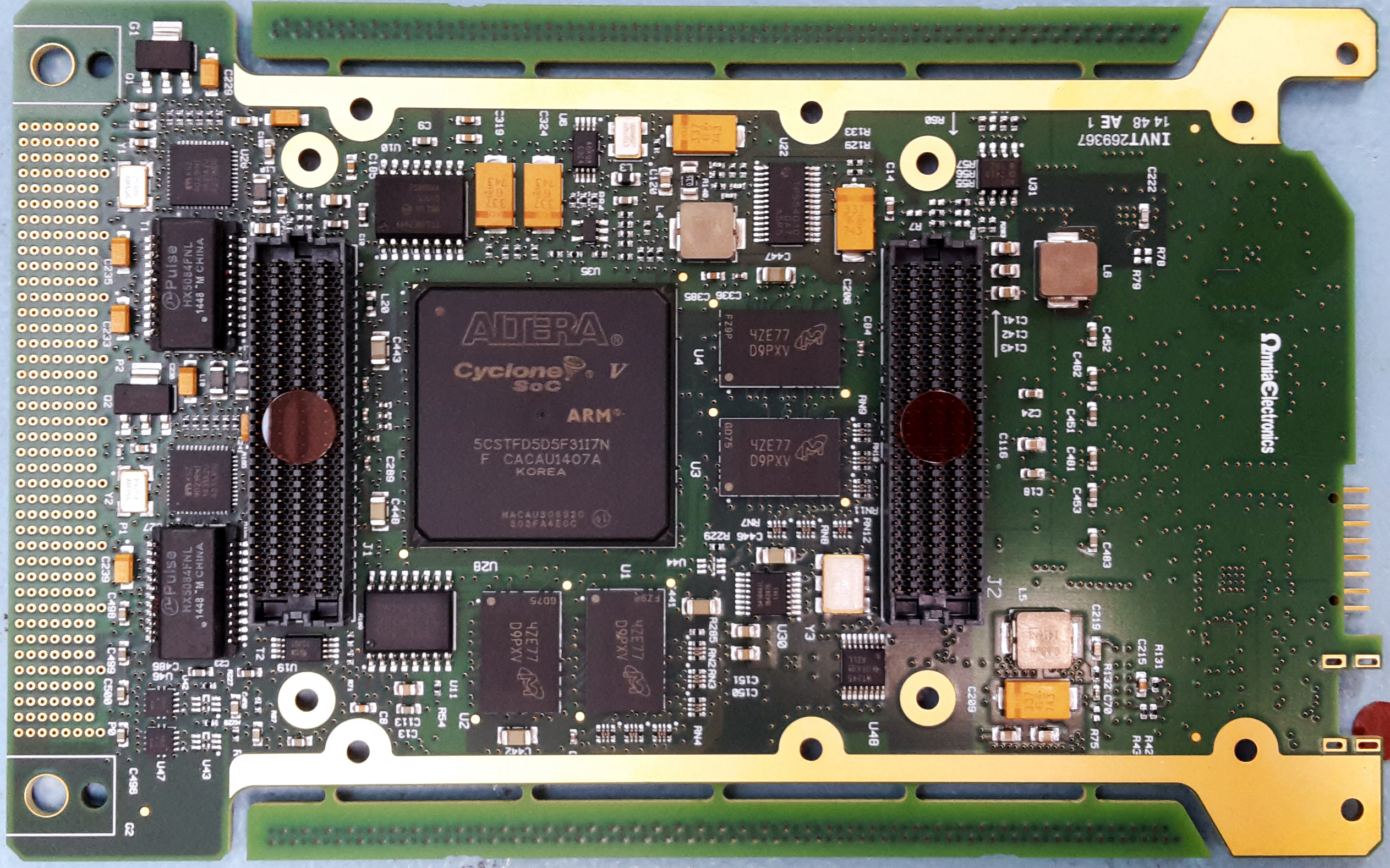

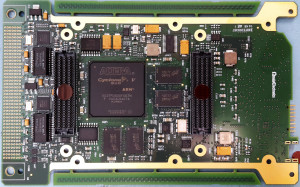

Cyclone V SocOpenVpx

VP-2101 Board: 3U OpenVPX™ board for general-purpose I/O applications requiring air-cooled or conduction cooled equipment. It is designed for the most demanding applications, combining system-on-chip capabilities together with the flexibility of interfaces customization via several available add-on modules.



Cyclone V

MCS Bridge Board: implementing a VME64 slave interface and a MCS master interface in order to realize a bridge from the VME bus the device under test, used for the execution of validation test in Fit Form Function replacement of an obsolete device with a new designed FPGA in avionic application.



Cyclone IV

Universal Bridge Board: implementing a VME64 slave interface and a configurable master interface in order to realize a bridge from the VME bus and a defined custom bus to interface a device under test through a500 pin high density connector.

PIU BB Testbench: HW platform for the on-board SW development and validation in space application. The system is composed by a processor board and a Cyclone IV GX FPGA Development Kit hosted in a 19” chassis. The FPGA is used to emulate the real behavior of the satellite peripherals during a mission in a lab environment.
